SR20DET

Most of the engine harness connectors are Sumitomo 62 series, Yazaki 58 W series and Furukawa 62 Z. Sumitomo 62 was later superseded by Sumitomo RS series, so if you want to buy terminals for old 62 series housing you should search accordingly. RS series terminals do not fit 62 series housings. If you are looking to buy new housings with terminals then use RS series.

ECU connector

Made by TE connectivity 040/070 series multi-lock hybrid series, male. DOC

64pin TE Connectivity 174836-5
76pin TE Connectivity 5-174385-5

64pin female housing 177699-1
040 terminal 175265-1 (0.3-0.85mm2)
070 terminal 175268-1 (0.3-0.85mm2), 175269-1 (1.25mm2)

76pin female housing 177700-1
040 terminal 175265-1 (0.3-0.85mm2)
070 terminal 175268-1 (0.3-0.85mm2), 175269-1 (1.25mm2)

SR20DET ignition coil master

Female 6pin, Yazaki 58 Connectors W Type Housing 6P Female
Housing 7223-1864-40
Retainer 7157-6560-40
Terminals 7116-1232 (0.5-0.85) (7116-1232-08) , 7116-1233 (1.25-2mm2) (7116-1233-08)

SR20DET igniter – output

Female 4pin, Sumitomo RS Series – Type E-RS

Housing E 04 FGY – 6189-7469
Retainer 6918-1596

SR20DET igniter – input

Female 5pin, Sumitomo RS Series – Type E-RS

Housing E 05 FGY – 6189-7470
Retainer 6918-1604

SR20DET CAS

Female 4pin, Sumitomo RS Series – Type E-RS

Housing E 04 FGY – 6189-7469
Retainer 6918-1596

SR20DET TPS

Female 3pin, Sumitomo RS Series – Type E-RS

Housing E 03 FBR – 6189-7710
Retainer 6918-1595

SR20DET IAC

Female 2pin, Sumitomo RS Series – Type E-RS

Housing E 02 FBR – 6189-0774
Retainer 6918-1594

SR20DET FICD

Female 2pin, Sumitomo RS Series – Type E-RS

Housing E 02 FPU 6189-0778
Retainer 6918-1594

SR20DET VTC

Housing Furukawa JFC PB185-02026 – 2P female

Lamda (O2 sensor)

Yazaki 58 Connectors W Type Housing 2P female
Housing 7223-1824-40, Retainer 7157-6520-80

Lamda sub-harness

Yazaki 58 Connectors W Type Housing 2P male

Housing 7122-1824-40 male

Inj/temp to sub-harness

Housing RS 08 FGY-PR 6185-5181
Retainer 6918-1780

Injector/temp sub-harness

• Master

  Housing RS 08 MGY-PR 6188-5544 male
• SR20DET injector connector female 2pin, Sumitomo RS Series – Type E-RS

  Housing E 02 FB – 6189-0773
  Retainer 6918-1594
• Water temp dash flat black
• Water temp to ecu

  Housing E02FGY – 6189-0772 gray

Ignition coil sub-harness

• Master sub-harness male 6pin, Yazaki 58 Connectors W Type Housing 6P Male
  Housing 7122-1864-40
  Terminal holder 7157-6560-40
  Terminals 7114-1232-08, 7114-1233-08
  Seal 7157-3560 (0.5-0.85)
  Cavity plug 7157-3562-80

• Ignition coil connector female 3pin, Sumitomo RS Series – Type E-RS

  Housing E 03 FGY-RS, 6189-7471
  Retainer No. 6918-1595
  Terminals 8240-0263 (0.3-0.5mm²), 8240-0264 (0.85-1.25mm²), 8240-0265 (2.0mm²)

Knock sensor

2 way female, RS series
Housing Furukawa RS02FGY-S PB295-02120 (retainer PB464-02880), Sumitomo RS 02 FGY, 6185-0867 (retainer 6918-1774)

Knock sub-harness

• Housing RS 02 MGY, 6188-0554
  Retainer 6918-1774
• Furukawa square 2way, 1 pin used

S13 LHD F8

Yazaki 58 Connectors W Type Housing 8P female
Housing 7223-1884-40
Retainer – 7157-6580-30
Terminals – 7116-1232 (0.5-0.85) (7116-1232-08) , 7116-1233 (1.25-2mm2) (7116-1233-08)
Dummy plug – 7157-3562-80

S13 LHD F10

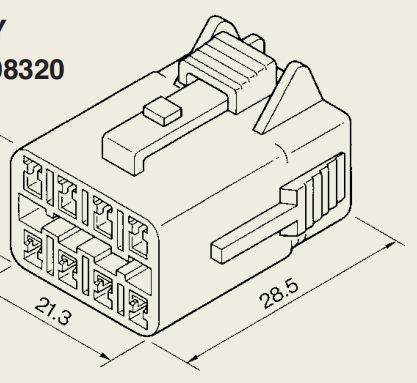

Furukawa 62 Z type
Housing – Z08F-BR PB015-08850
Retainer – BZ08F-LG PB025-08880
Terminal – MT095-33080 (0.3), MT095-33880 (0.5～0.85)

Yazaki 060 Z
Housing – 7123-7781-80 – brown
Terminal holder – 7157-7789-60
Terminal – 7116-1304 .2-.3 mm2 (24-22 AWG) , 7116-1305 .5-.85 mm2 (20-18 AWG)
Seal – 7157-3791-60 green

S13 LHD F1 dash interface

Yazaki 62 Connector C Type Housing 16P Female
Housing – 7123-7960
Terminals – 7116-1300 .2-.3 mm2 (24-22 AWG), 7116-1301 .5-.85 mm2 (20-18 AWG)

---

350z MAF connector

Housing Yazaki RH 7283-8850-30
Terminal 7116-4416-02 (0.5mm²)
Seal 7158-3167-80

S14 MAF

Housing Furukawa JFC04P-B SA’Y – PB185-04026

S14a MAF

Housing E 04 FBR – 6189-7713

Z32 MAF

Furukawa JFC 2.8mm tab, 5mm pitch
Housing PB185-06026
AMP JUNIOR POWER TIMER 6 pin fits as a replacement
connector 282767-2
terminal 927770-3
grommet 828905-1

Q45 MAF

AMP JUNIOR TIMER 3 way fits as a replacement

---

Yaris ignition coil

Yazaki 090II Sealed Series
OEM 90980-11885
7283-7449-30 Black, 7283-7449-40 Gray
Terminals 7116-4025, 7116-4026, 7116-4027

---



VQ35DE knock sensor sub-harness

RS 02 MSB 6181-0515 male violet
RS 02 FSB 6189-0951 female violet

---

350z CD01 neutral and reverse switch connectors, female 2pin, Yazaki – NEEDS VERIFICATION
7223-6526-30
